Hybrid Ceramic Bearings
High-Performance Hybrid Ceramic Bearings: The Next Generation of Rotation

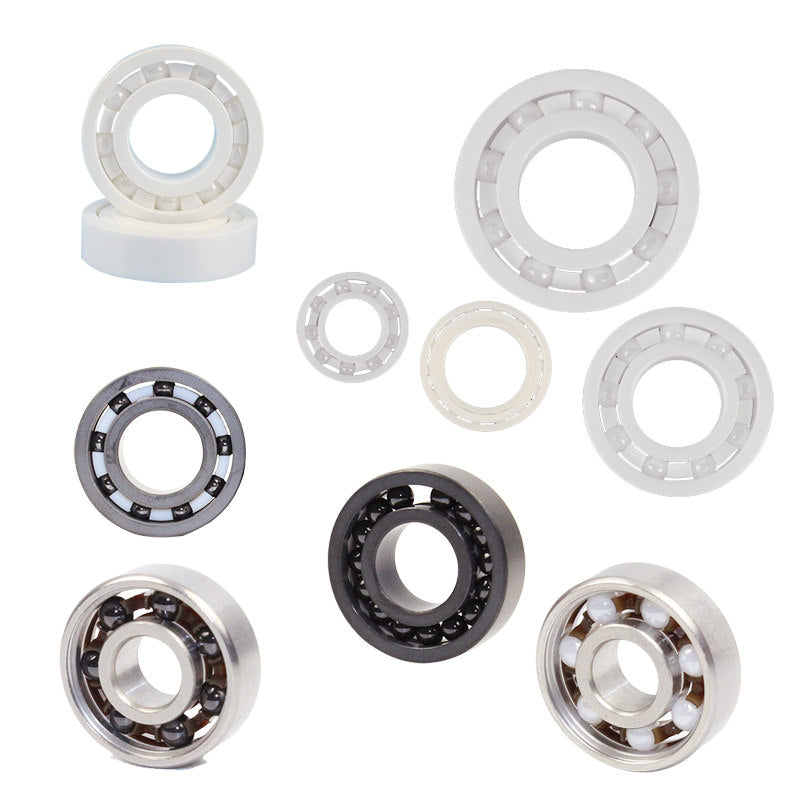

Hybrid ceramic bearings represent a strategic fusion of material science, combining high-grade chrome steel rings with ultra-hard Silicon Nitride (Si3N4) balls. This synergy eliminates the limitations of traditional all-steel bearings, making them the premier choice for extreme environments and high-precision applications.
Key Technical Advantages
-
Exceptional Speed Capability: Ceramic balls are 40% less dense than steel. This reduction in centrifugal force and friction allows for significantly higher RPMs with reduced heat generation.
-
Electrical Insulation: Unlike steel, $Si_3N_4$ is a natural insulator. This prevents "electrical pitting" or fluting damage caused by stray currents, a critical feature for EV motors and VFD-controlled equipment.
-
Superior Thermal Stability: With a lower coefficient of thermal expansion, these bearings maintain precise tolerances even during rapid temperature fluctuations.
-
Extended Service Life: The extreme hardness of ceramic balls (Vickers scale) means they can "polish" out surface imperfections on the steel races, effectively extending the bearing's operational life by 3x to 5x compared to standard steel.
Product Specifications
| Feature | Specification |
| Ball Material | Silicon Nitride (Si3N4) - Grade 5 or better |
| Race Material | GCr15 / AISI 52100 Chrome Steel |
| Lubrication | Maintenance-free High-Speed Grease or Oil Mist |
| Operating Temp | -40°C to +160°C (Customizable up to 250°C) |
Industrial Applications
-
High-Speed Spindles: CNC machining and dental equipment.
-
Electric Mobility: EV traction motors and e-bike drive units.
-
Renewable Energy: Wind turbine generators and solar tracking systems.
-
Aerospace: High-performance turbines and instrumentation.
