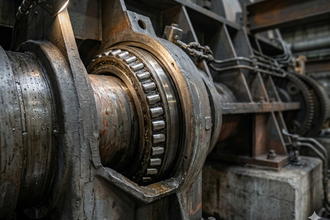

In the heavy industry sector—from metallurgical steel plants to deep-pit mining operations—there lives a class of machinery we can only describe as "silent giants." Equipment like converter trunnions and ladle turret slewing bearings operate at agonizingly slow speeds, often just 1 to 2 RPM. Yet, they routinely support catastrophic loads exceeding thousands of tons.
These low-speed, heavy-duty bearings rarely show early, visible signs of distress. But when they fail, the consequences are devastating. In one notorious case, a sudden trunnion bearing failure forced a major steel plant into a 16-day total shutdown, racking up over $1.1 million (8 million RMB) in direct economic losses.
For maintenance engineers and plant managers, the primary pain point is invisibility. Because the rotational speed is incredibly low, the periodic shock energy generated by an emerging defect is minuscule. In fact, the fault frequency often drops below 1 Hz, making it completely swallowed up by intense background noise like material impacts and structural vibrations. Traditional vibration monitoring simply falls short.
To break this deadlock, heavy industry must upgrade its diagnostic toolkit with high-precision technology.
1. Beyond the Noise: 3 Advanced Diagnostic Frontiers
Standard vibration analysis is like trying to hear a drumbeat next to a jet engine. To find microscopic faults in ultra-low-speed environments, we rely on specialized, high-sensitivity techniques.
Acoustic Emission (AE) Technology: Listening to the "Heartbeat" of Metal
While traditional sensors listen for structural shaking, Acoustic Emission (AE) listens to the material itself. When micro-cracks propagate, or when subsurface fatigue occurs due to lubricant contamination, the metal releases high-frequency elastic waves. AE is highly sensitive to these microscopic stress waves. For instance, in a coal pulverizer gearbox at a major smelting plant, AE sensors detected an energy anomaly 10 times higher than what standard motor-side vibration sensors picked up, successfully pinpointing a hidden crack in the bearing cage before it collapsed.
Oil & Grease Analysis: Decoding the Wear DNA
A bearing under thousands of tons of load will inevitably shed microscopic debris into its lubricant. The size, geometry, quantity, and elemental composition of these particles act as the bearing's health DNA. By utilizing ferrography and analytical spectroscopy on grease samples, engineers can reverse-engineer the exact wear mechanism taking place. A steel plant utilizing this methodology tracked the wear trend of a ladle turret bearing over a 10-year span, catching an abrupt spike in abrasive wear early enough to prevent an expensive, catastrophic lock-up.
Stress Wave Analysis & PeakVue: Capturing Micro-Shocks
At 1 RPM, conventional fast Fourier transform (FFT) spectrums fail due to insufficient frequency resolution. Advanced high-frequency demodulation techniques, such as PeakVue and Shock Pulse Methods (SPM), solve this by filtering out low-frequency background rumble. They isolate only the high-frequency stress waves generated when a rolling element passes over a microscopic pit, making even the smallest spalling on a low-speed raceway fully visible.
2. Shift from Reactive to Proactive: Building the Management Defense Line
Advanced diagnostics tell you when a bearing is failing, but robust operational management prevents the failure from happening in the first place.
-
Establish Bespoke Baseline Standards: Universal standards (like ISO vibration limits) are practically useless for ultra-low-speed machinery. Instead, plants must establish customized "relative evaluation standards" based on historical data trends and cross-comparisons with identical machinery. Incorporating a "three-fold fault rate calibration method" allows for highly accurate, false-alarm-free alert thresholds.
-
Stricter Control Over Lubrication and Temperature: Temperature remains the most direct indicator of tribological health. Under extreme loads, the grease fill volume is critical. Empirical data shows that when the bearing housing grease volume drops below 20% (1/5), localized temperature spikes rapidly accelerate wear. Precision automated relubrication paired with continuous thermal tracking is the ultimate defense against micro-motion wear and premature fatigue.
3. The Future: Intelligent Sensing and Integrated Monitoring
As Industry 4.0 matures, the protection of critical low-speed, heavy-duty bearings is evolving away from isolated, manual inspections.
The future lies in two parallel tracks: Embedded Smart Bearings—where micro-sensors are integrated directly into the bearing rings to capture raw strain and load data at the source—and Multi-Source Data Fusion. By combining vibration, temperature, acoustic emission, and oil analysis into a single, AI-driven diagnostic ecosystem, heavy industries can finally guarantee total uptime for their most critical assets.
